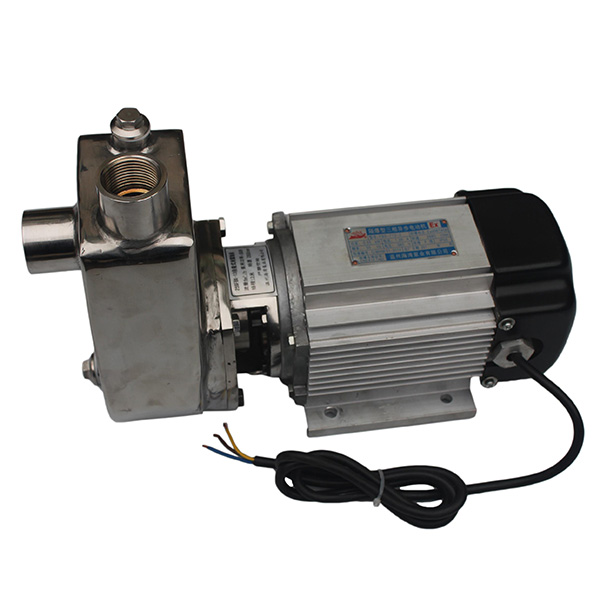

HW three-phase explosion-proof methanol pump
date：[2018-11-04] pk_hits：
|
 |
|
HW urea pump series is a stainless steel self-priming miniature electric pump developed by our company. The impeller of the pump adopts a semi-open structure. Due to the excellent structure, performance and shape of the product, the over-flow parts and connecting frame are made of high quality. Made of stainless steel, the product has the advantages of corrosion resistance, reliable performance, convenient use and maintenance, compact structure, low energy consumption and good sealing performance. It can transport urea, methanol, gasoline, alcohol, flammable and explosive medium such as xylene.
Features
The flow component is a whole stainless steel 304
Corrosion-resistant mechanical seals, cold-resistant to minus 50 degrees, zero to 150 degrees
Explosion-proof permanent magnet motor Protection class IP55
Built-in pressure reducing valve
Small size, easy to carry
| 性能參數(shù)Technical Specification | ||||||||
型號 Model | 口徑Size(mm) | 流量Flow(L/min) | 揚程Head(m) | 功率Power(KW) | 電壓Valtage(V) | 轉(zhuǎn)速Speed(rpm） | 材質(zhì)Material | 葉輪Impeller |
| HW25-3-18 | 25 | 50 | 10 | 0.25防爆 | 380 | 2900 | 不銹鋼 | 不銹鋼 |
| HW25-3-18 | 25 | 50 | 18 | 0.55防爆 | 380 | 2900 | 不銹鋼 | 不銹鋼 |
| HW25-8-18 | 25 | 133 | 18 | 0.75防爆 | 380 | 2900 | 不銹鋼 | 不銹鋼 |
| HW40-10-18 | 40 | 166 | 18 | 1.1防爆 | 380 | 2900 | 不銹鋼 | 不銹鋼 |
| HW40-13-20 | 40 | 217 | 20 | 1.5防爆 | 380 | 2900 | 不銹鋼 | 不銹鋼 |
| HW50-13-22 | 50 | 217 | 22 | 2.2防爆 | 380 | 2900 | 不銹鋼 | 不銹鋼 |
| HW50-13-30 | 50 | 217 | 30 | 3防爆 | 380 | 2900 | 不銹鋼 | 不銹鋼 |
