KCB cast iron gear
date：[2018-11-04] pk_hits：
|
 |
|
product manual
KCB gear pump is suitable for conveying solid particles and fibers without corrosion, temperature is not higher than 80 ° C, viscosity is 5 × 10-6 ~
1.5×10-3m2/s (5-1500cSt) lubricating oil or other liquid similar in nature to lubricating oil. Such as crude oil, diesel, kerosene, animal and vegetable oil, etc., equipped with copper gears, explosion-proof motors can transport low-flammable liquids such as gasoline, alcohol, benzene, etc. Products used in petrochemicals, pipeline transportation, ships, mines, metallurgy, power stations, etc.
Features
Compact structure
Geared shaft safety valve pump body seal composition
Delivery of high viscosity liquids, low pressure, high flow rate, etc.
Good self-priming performance No need to pour liquid before pump operation
Power driven motor or diesel engine
Built-in safety valve for safety protection when overloaded
The transfer pump can be used in the conveying system. The booster pump can be used as a lubricating oil pump in the industrial field.

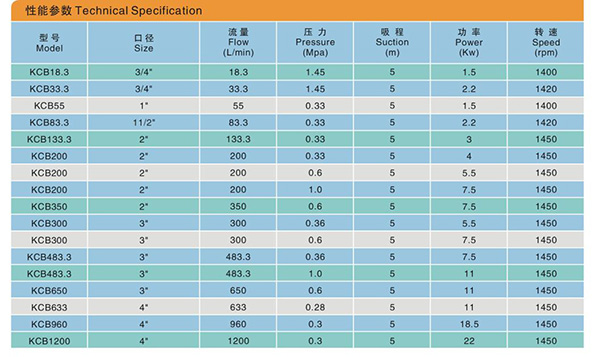

Product performance
Product
